Citrix Streaming Profiler for Streaming Application

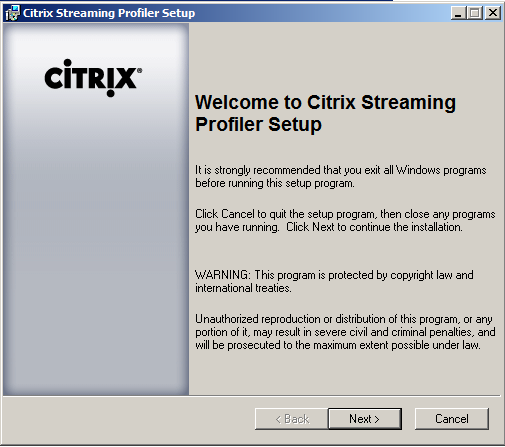

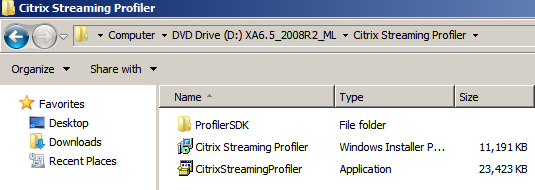

Install Citrix Streaming Profiler (D:\Citrix Streaming Profiler) from the Citrix software DVD/ISO.

2014-07-02 15_13_42-GAVSCTX01 - VMware Workstation

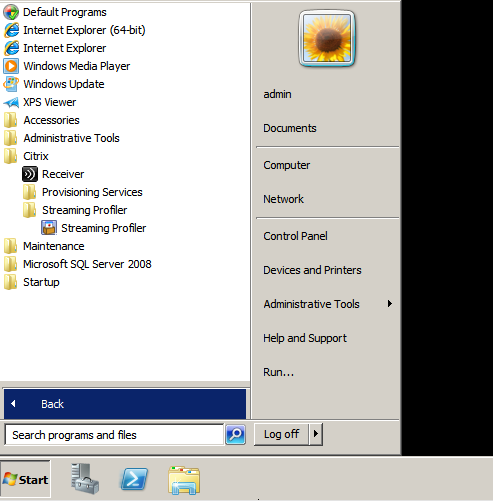

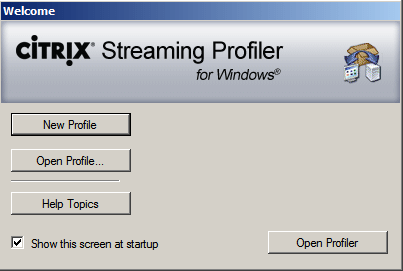

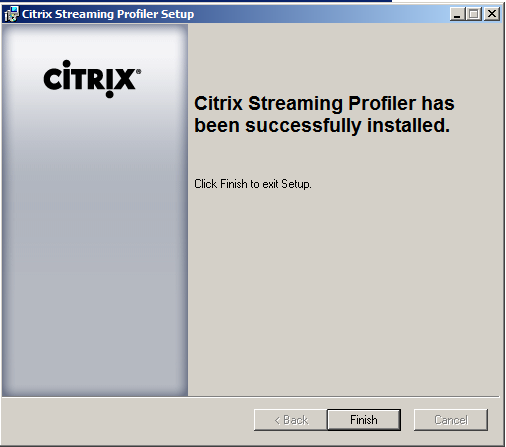

After installation, Citrix Streaming Profiler window will open to create a new Profile, or open Streaming Profiler from Start > Program Files and click New Profile.

2014-07-02 15_33_14-GAVSCTX01 - VMware Workstation 2014-07-02 15_34_24-GAVSCTX01 - VMware Workstation 2014-07-02 15_39_35-GAVSCTX01 - VMware Workstation 2014-07-02 15_40_01-GAVSCTX01 - VMware Workstation











































































Give the name for the Profile.

2014-07-02 15_40_40-GAVSCTX01 - VMware Workstation

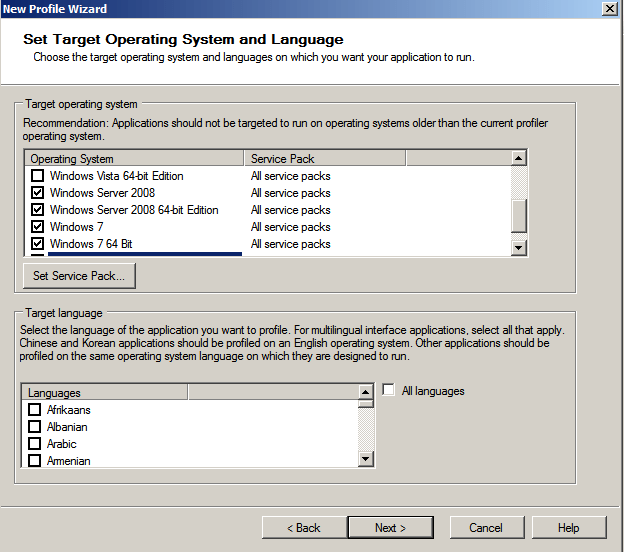

Then select the Target Operating System in which the application should run and the language.

2014-07-02 15_41_22-GAVSCTX01 - VMware Workstation

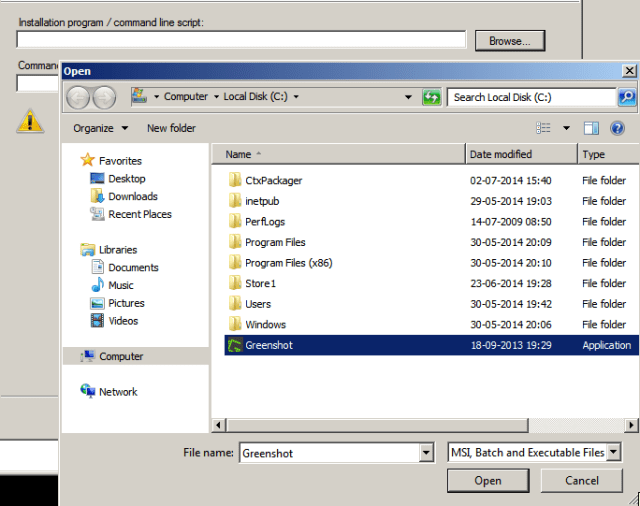

Choose an Installation program, it can be any Executable file, Batch file or MSI file.

2014-07-02 15_42_59-GAVSCTX01 - VMware Workstation

Now run the Installer by clicking Launch Installer button. The installation will start and complete the installation. In the background, the Profiler will capture the path and the files which are needed for the program to launch from the operating system and creates the Profile.

2014-07-02 15_43_49-GAVSCTX01 - VMware Workstation

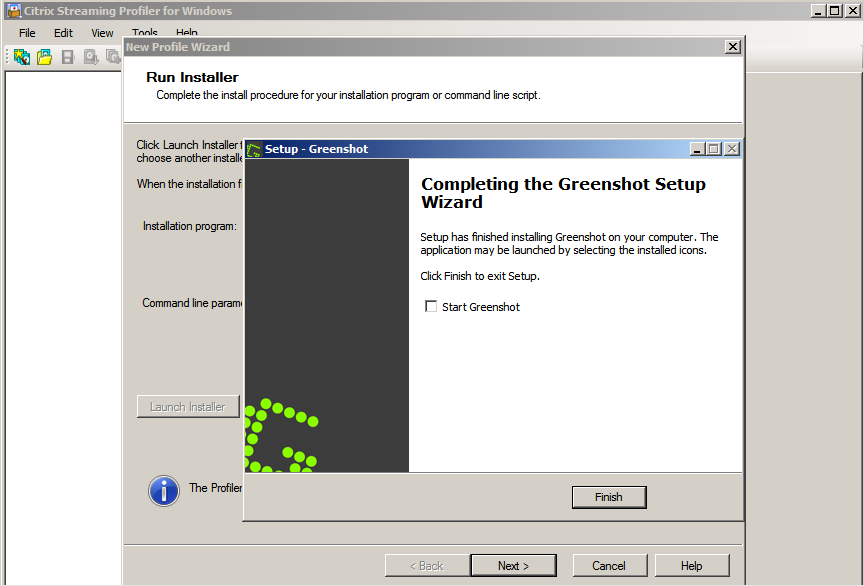

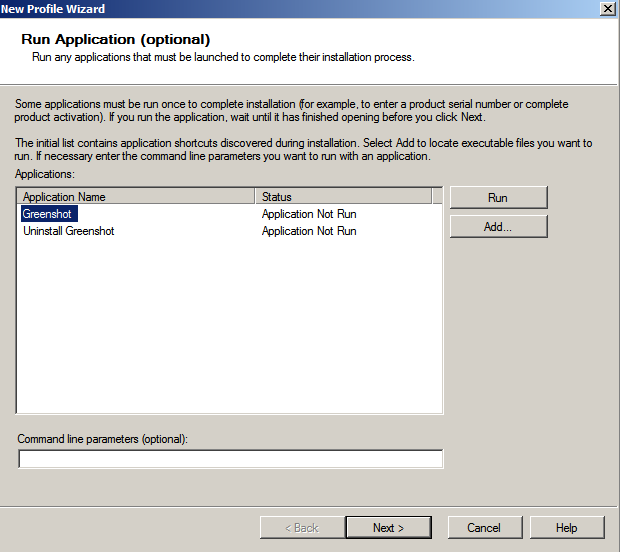

Once the installation completed, some applications must be run once to complete the process. Select the application and click Run. After launching close the application and click next.

2014-07-02 15_44_58-GAVSCTX01 - VMware Workstation 2014-07-02 15_45_23-GAVSCTX01 - VMware Workstation

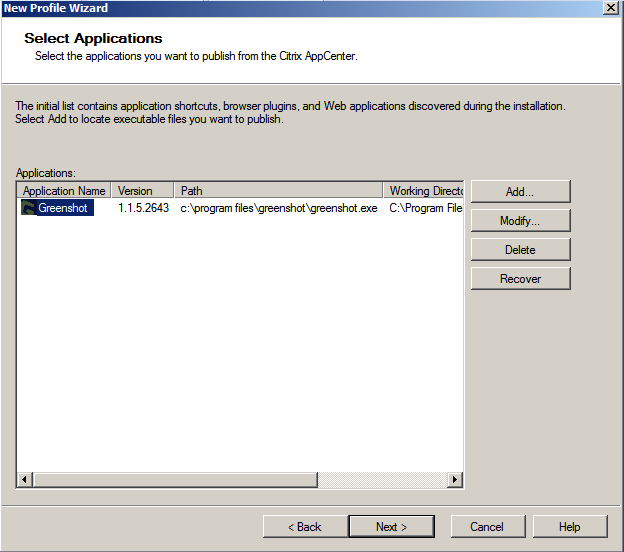

We can select the application that we need to publish in Citrix, we can also modify if any command to be executed with the application or delete the applications from the list.

2014-07-02 15_46_04-GAVSCTX01 - VMware Workstation

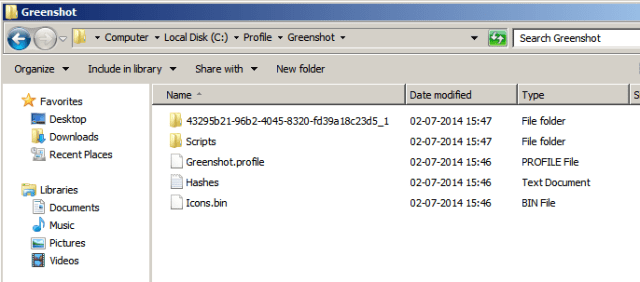

Save the Profile in the network shared path, i.e., UNC path. Below picture shown is from the different server.

2014-07-02 15_48_33-GAVSADC01 - VMware Workstation

Now launch XenApp AppCenter to publish the application. Choose the application type as Streamed if possible and Streamed to server. Now the profile application will stream to the server and the clients will launch it through ICA.

2014-07-02 15_49_57-GAVSCTX01 - VMware Workstation 2014-07-02 15_52_39-Citrix XenApp - Applications
